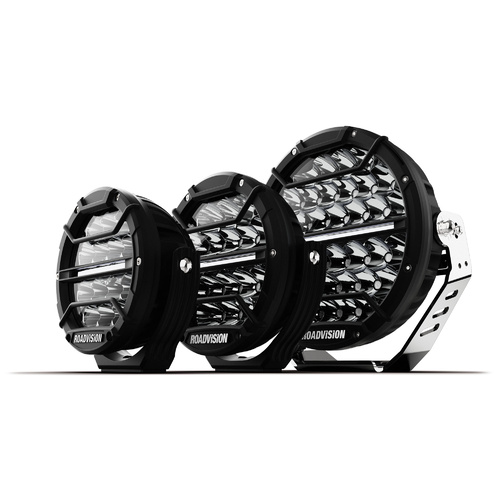

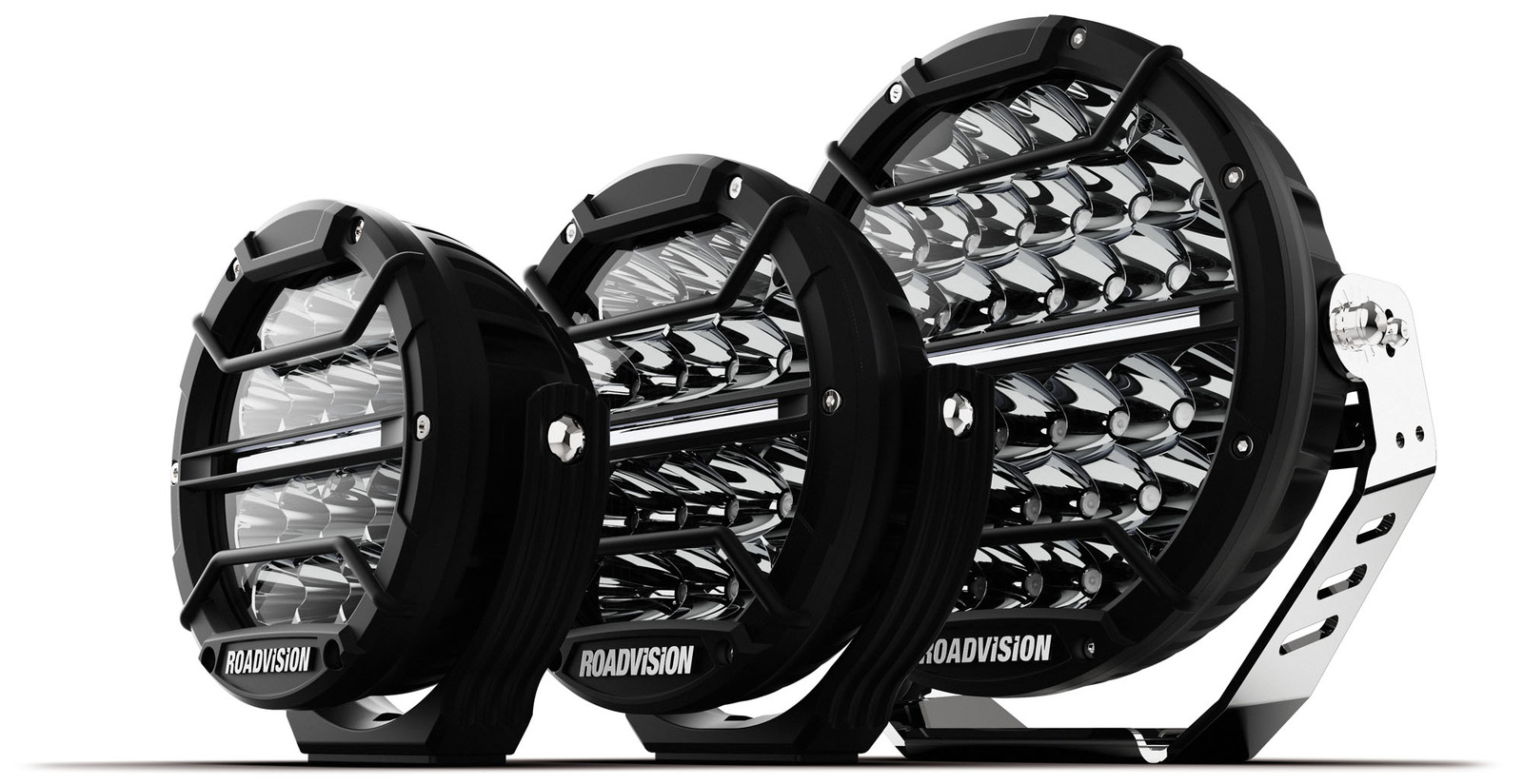

The Dominator DL2 Series by Roadvision is the next generation in LED driving lamps, with exceptional lighting performance, in a compact yet rugged package. Equipped with Thermal Management Technology, the Dominator DL2 Series smart adjust to the environmental temperature to balance optimal performance and overheating prevention. The Dominator DL2 Series produce up to 10802lm of instant light output from premium 3W Osram hi-lux LED’s, packaged in a tough yet light weight die-cast aluminium housing & polycarbonate lens, the Dominator Series provide superior performance and durability. Available in 6″, 7″ & 9″ models, they feature an additional DL LED strip and protective front grill.



RANGE FEATURES

  • Dominator DL2 Series driving lamps produce up to 10802lm of instant light output
  • Thermal Management Technology
  • Additional Daylight LED strip & protective front grill
  • Advanced optics produces up to 1450m Spot beam (single light)
  • 3W Osram Hi-Lux LED’s produce super white light close to daylight
  • Multi-volt 9-32V DC input & Super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Light weight tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • Simple 2 wire installation with Deutsch plug
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved



Part Number RDL4601S RDL4701S RDL4901S
Description DL Series 6" Round 14 LED DL Series 7" Round 16 LED DL Series 9" Round 34 LED
Beam Type Spot Beam with Daylight Strip Spot Beam with Daylight Strip Spot Beam with Daylight Strip
Maximum Lumens 4445lm 5204lm 10802lm
Maximum Lux @10m 3346lx 3146lx 3758lx
Maximum Beam Distance 1157m (Single Light) 1234m (Single Light) 1450m (Single Light)
Maximum Watts 67W 78W 142W
Light Source 14x3 Watt Osram LED's + Daylight Strip 16x3 Watt Osram LED's + Daylight Strip 34x3 Watt Osram LED's + Daylight Strip
Voltage Input 9-32V DC 9-32V DC 9-32V DC
Current Draw Amps 5.6A @13.8V 6.4A @ 13.8V 13.4A @ 13.8V
Dimensions AxBxC 164x83x168mm 187x78x193mm 238x93x249mm
Lamp Diameter 6" (168mm) 7" (187mm) 9" (238mm)
Wiring 2 Pin Deutsch Plug 2 Pin Deutsch Plug 2 Pin Deutsch Plug
Lux @ 10m 3346 Lux 3146 Lux 3758 Lux
Meters @ 1 Lux 579m 617m 725m
Meters @ 0.5 Lux 1157m 1234m 1450m

Product images are for illustrative purposes only and may sometimes differ from the actual product. Please confirm with specifications.

Disclaimer:

Please note that the proper fitting and installation of automotive parts purchased from our website are the sole responsibility of the buyer. While we strive to provide accurate and comprehensive product information, it is essential for the purchaser to ensure compatibility with their specific make and model of vehicle. We recommend consulting with a qualified automotive professional or mechanic if there are any uncertainties regarding the fitment of the purchased parts. Any damages or issues arising from improper installation or compatibility are not the responsibility of our website. By making a purchase, you acknowledge and accept this responsibility.

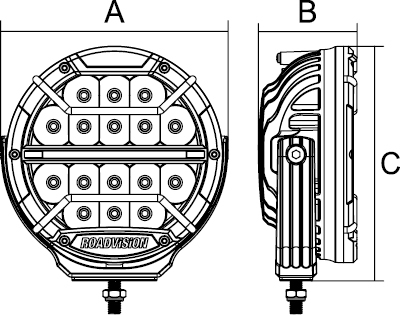

Specifications:

RDL4601S DIMENSIONS

164mm (A) x 83mm (B) x 168mm (C)




RDL4701S DIMENSIONS

187mm (A) x 87mm (B) x 193mm (C)




RDL4901S DIMENSIONS

238mm (A) x 93mm (B) x 249mm (C)
