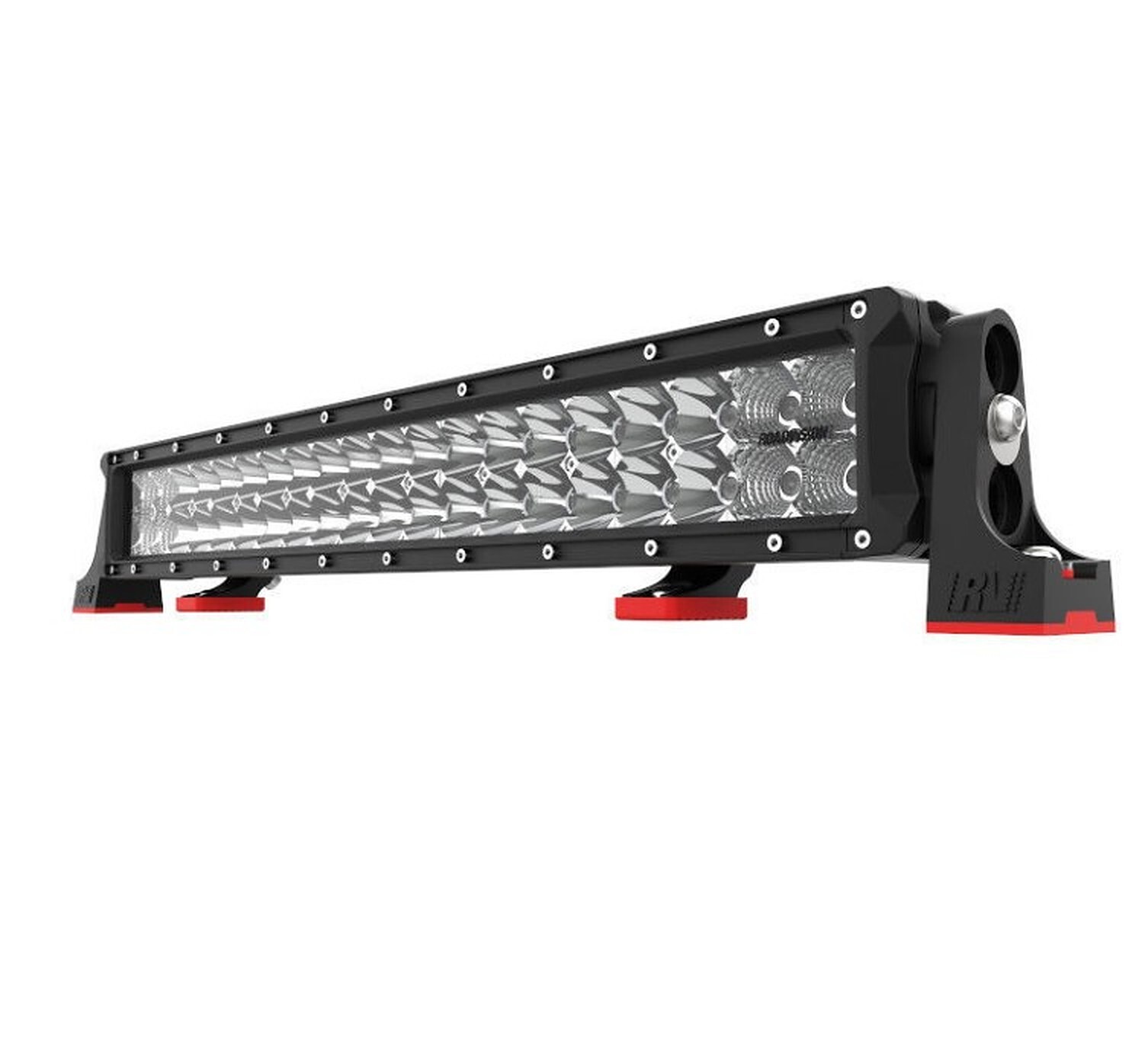

Roadvision 22-Inch DC2 Series LED Bar Light Combo Beam
The Roadvision DC2 Series are the next generation in dual row LED light bars. Producing up to a massive 25920lm of light output, the DC2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs.

Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 8” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DC2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DC2 Series by Roadvision, brute power from the biggest bars in our line-up.

Product images are for illustrative purposes only and may sometimes differ from the actual product. Please confirm with specifications.

Disclaimer:

Please note that the proper fitting and installation of automotive parts purchased from our website are the sole responsibility of the buyer. While we strive to provide accurate and comprehensive product information, it is essential for the purchaser to ensure compatibility with their specific make and model of vehicle. We recommend consulting with a qualified automotive professional or mechanic if there are any uncertainties regarding the fitment of the purchased parts. Any damages or issues arising from improper installation or compatibility are not the responsibility of our website. By making a purchase, you acknowledge and accept this responsibility.

Specifications:

- LUMENS 10800lm
- Light Source 40 x 3w Osram LED's

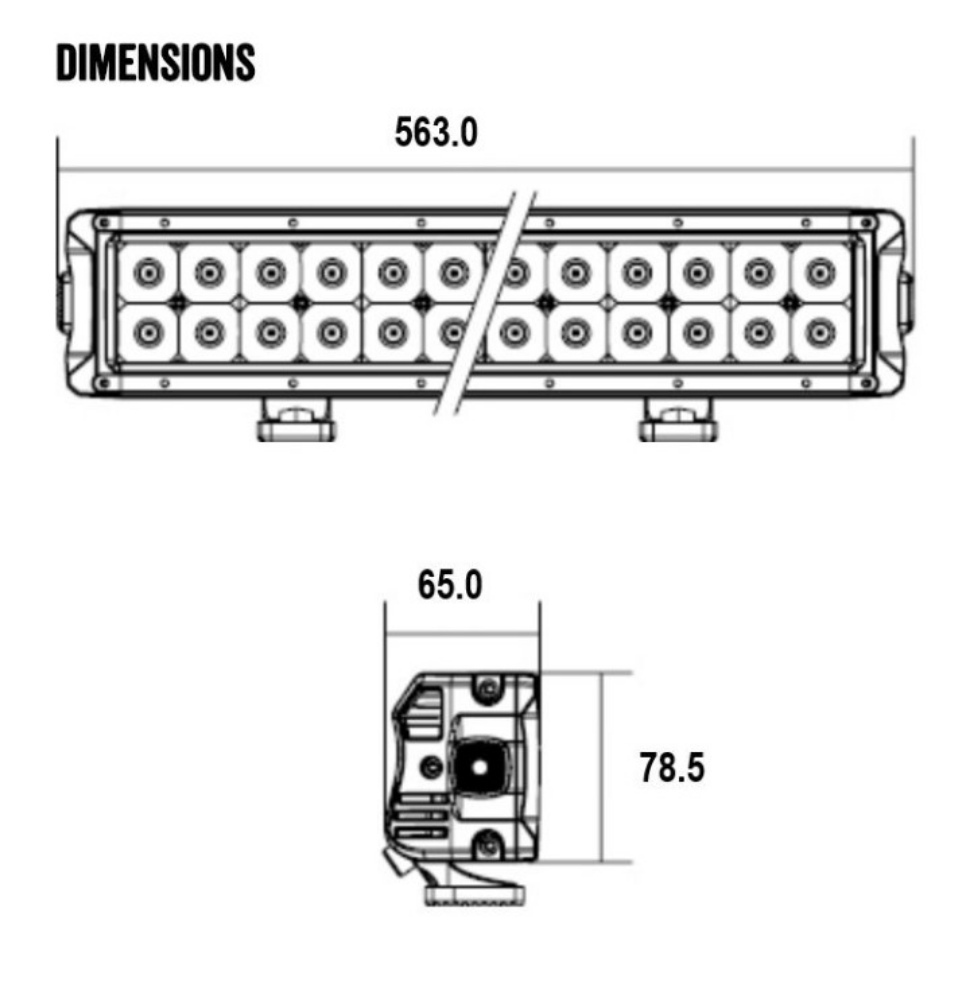

- Dimensions 563 x 65 x 78.5mm
- Current Draw 6.7A @ 13.8V
- Wiring 2 Pin Deutsch Plug
- Voltage 10-30v
- Wattage 120W
- Bar Length 22"
- Optional features Dimmable function
- Adjustable Mounting Anti vibration - 9 height settings

SKU RBL5220C
Brand Roadvision

Features:

- DC2 Series dual row LED bar lamps produce up to 25920lm of instant light output
- Available in 8” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming
controller
- Nine (9) position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
- Warranty 7 years
